LDPE film blowing machines from China manufacturer - Wenzhou Zhuxin Machinery Co., Ltd.

Payment Terms:	T/T.L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SJ-H

Delivery Date: 30days

Certificate: CE

Packing: wooden case

Brand Name: Changyin

Min. Order:1 SET;Packing:wooden case;DeliveryDate:30days;PaymentType:T/T.L/C;Trademark:Changyin;Certificate:CE;

Material:HDPE , LDPE, LLDPE
Technical data:

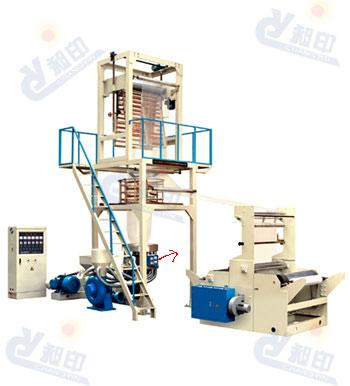

1.Model:SJ-H50 Film blowing machine
Diameter of screw:50mm
L/D:26:1
Single-face thickness of film:0.008-0.06mm
Reduced diameter of film:100-600mm
Max.Output:25-30kg/h
Power of main motor:11kw
Power of Traction motor:1.1kw
Heating power:13kw
Outline dimension:5000*2000*4200mm
Weight:1.3T

2.Model:SJ-H55 Film blowing machine
Diameter of screw:55mm
L/D:26:1
Single-face thickness of film:0.008-0.06mm
Reduced diameter of film:200-800mm
Max.Output:35-40kg/h
Power of main motor:15kw
Power of Traction motor:1.1kw
Heating power:19kw
Outline dimension:5200*2200*4500mm
Weight:1.5T

3.Model:SJ-H60 Film blowing machine
Diameter of screw:60mm
L/D:26:1
Single-face thickness of film:0.008-0.06mm
Max.Output:60-65kg/h
Reduced diameter of film:300-1000mm
Power of main motor:18.5kw
Power of Traction motor:1.5kw
Heating power:21kw
Outline dimension:5500*2500*5200mm
Weight:1.7T

4.Model:SJ-H70 Film blowing machine
Diameter of screw:70mm
L/D:26:1
Single-face thickness of film:0.008-0.06mm
Max.Output:65-70kg/h
Reduced diameter of film:400-1200mm
Power of main motor:22kw
Power of Traction motor:1.5kw
Heating power:23kw
Outline dimension:5800*7800*6300mm
Weight:2T
